3030x2, TL Bushing

3030x2, 3030X2

3030x2

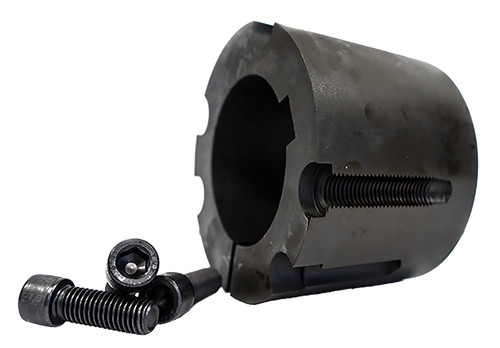

3030x2, TL Bushing, C45 Steel, Black Oxide,

Learn more about 3030x2 TL Bushings and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	3030x2
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore (in)	2.000
Bore Description	2 Inch Finished Bore
Min. Bore (in)	0.9375
Unit System	Inch
Bushing	3030
A (in)	4.250
B (in)	3.000
C (in)	5.750
D (in)	4.000
Torque Capacity (lb/in)	24,000
Bolt Circle (in)	4.000
MOQ	1
Weight (lb)	9.00
Part Number Cross Reference	3030 2., 3030 X 2, 3030X2, 3030 X 2-KW BUSHING, TL30302, 3030X2, 3030X2, 3030X2, 3030X2, 3030X2, 3030x2, 117021, 3030x2
Set Screw Quantity	2

Related Products

Comparable to: 3030 2., 3030 X 2, 3030X2, 3030 X 2-KW BUSHING, TL30302, 3030X2, 3030X2, 3030X2, 3030X2, 3030X2, 3030x2, 117021, 3030x2
