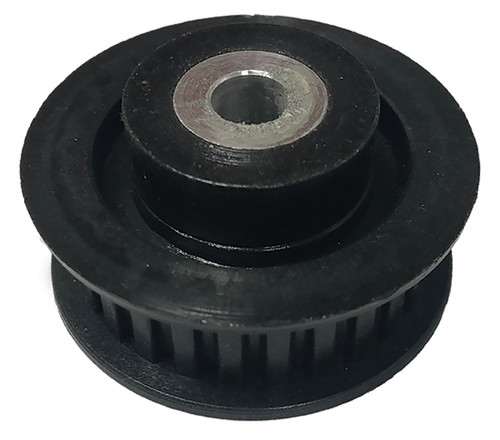

Picture shown may not be representative of actual product

21XL037MDFM6

Toronto: 0

Need more than what's available in one location? Please Contact Us.

(No reviews yet) Write a Review

SKU:: 21XL037MDFM6
UPC:: 00195057205932
Weight:: 0.05 LBS
Bulk Pricing:: Buy in bulk and save
Large Product Image:: https://bbman.blob.core.windows.net/resources/Production/Product/24XL037-DFM4.jpg
Weight Packaged:: -
Gates UPC:: -
Ametric:: -
Bando:: -
Carlisle:: -
Contitech Part Number:: -
Contitech Product Number:: -
Dodge Part Number:: -
Dodge Description:: -
Maska:: -
Gates Part Number:: -
Goodyear:: -
HAAS:: -
Neuman No Dash:: -
Neuman With Dash:: -
ITW:: -
Jason:: -
Martin:: -
Masterdrive Part Number:: -
Masterdrive UPC:: -
Maurey:: -
Maurey Old:: -
McMaster Carr:: -
Mitsuboshi:: -
Misumi:: -
Motion Industries MINO:: -
MSC:: -
On Drives:: -
Optibelt:: -
PIC:: -
Plastok:: -
Powerdrive:: 21XL037MDFM6
PTI:: -
Rainbow:: -
Regal Item Number:: -
Regal Part Number:: -
SIT:: -
Stock Drive:: A 6J 3M21DF09506
SDP No Space:: A6J3M21DF09506
TB Woods:: -
Torque Transmission:: -
Transdev:: -
Image Alt Text:: 21XL037MDFM6
Unlaub Item Number:: -
WM Berg:: -
York:: -
Zoro:: -
Grainger BB:: -
Grainger Other:: -
Tooth Count:: 21
Maximum Usable Length (in):: -
Pulley Belt Width (in):: -
Hub Diameter (in):: 0.875 in
Hub Diameter (mm):: -
A (in):: -
B (in):: -
C:: -
D:: -
D small:: -
D large:: -
E:: -
Gates Product Number:: -
F:: -
G:: -
H:: -
L:: -
UST:: -
M:: -
T:: -
U:: -
V:: -
W:: -
X:: -
Y:: -
Insert Size:: IHUB875087M6A6
Datum C:: -
Maximum RPM:: -
Bore (in):: -
Bore (mm):: 6 mm
Face Width {in}:: 0.5 in
Face Width (mm):: -
Flange Diameter (in):: 1.5625 in
Flange Diameter (mm):: 39.6875 mm
For Belt Width (in):: 0.375 in
Keyway Depth (in):: -
Keyway Depth (mm):: -
Keyway Height (in):: -
Keyway Height (mm):: -
Keyway Width (in):: -
Keyway Width (mm):: -
Maximum Usable Length (mm):: -
Outside Diameter (in):: 1.3169 in
Outside Diameter (mm):: 33.4 mm
Overall Length (in):: 0.813 in
Pitch Diameter (in):: 1.3369 in
Pitch Diameter (mm):: 34 mm
Pitch Length (in):: -
Pitch Length (mm):: -
Torque_Capacity:: -
Number of Hubs:: -
Hardened Teeth:: -
Drive Alignment Guide:: https://bbman.blob.core.windows.net/resources/Production/Documentation/Proper%20Alignment.pdf
Flange_Tolerances:: -
General Characteristics:: https://bbman.blob.core.windows.net/resources/Production/Documentation/General%20Characteristics.pdf
Keyway_Tolerances:: -
Part_Number_Explanation:: https://bbman.blob.core.windows.net/resources/Production/Documentation/Timing%20pulley%20part%20number%20Identification.pdf
Pulley_Tolerances:: https://bbman.blob.core.windows.net/resources/Production/Documentation/Standard%20Pulley%20Tolerances.pdf
Tru_Motion:: -
Finish:: -
Product Schematic:: -
Type:: DFM
Bushing:: -
Bolt Circle:: -
Cap Screw:: -
Sheave Type:: -
For Belt Type:: -
Set Screw Quantity:: 1
Set Screw Size:: M3
Cap Screw Quantity:: -
Keyway Description:: -
Flange Description:: -
Hub Configuration:: -
Cap Screw Size:: -
Item Status:: Catalog Part
Belt Comment:: -
Belt Type:: -
Bore Type:: -
Bearing:: -
Webbed:: 0
Arms:: -
Bushing Note:: -
Arm Type:: -
Country of Origin:: United States
Bore:: 6 mm Bore
Website Brand:: Powerhouse Timing
Part Weight:: 0.052 lb
Bushing Installation:: -
For Belt Width (mm):: -
Tooth Style:: XL
Material:: Acetal
Flange Material:: Acetal
Insert Material:: Aluminum

Qty Price per Item

1-9
10-24
25-49
50-99
100+

$14.83
$12.75
$11.12
$9.65
$8.90

Ordering a larger quantity, contact us for volume discount.

$14.83
