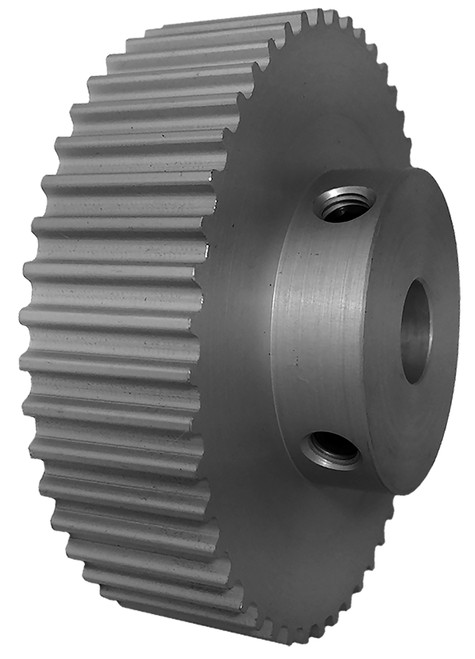

48-5M15M6A12, Timing Pulley

48-5M15M6A12 - Aluminum Powerhouse®HTD® Pulleys

48-5M15M6A12

48-5M15M6A12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48-5M15M6A12 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-5M15M6A12
Teeth 48
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.963
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 76.00
O.D. (mm) 75.30
Face Width (mm) 19.80
Overall Length (mm) 30.10
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.59
Part Number Cross Reference A 6A25M048NF1512, A6A25M048NF1512, 48-5M15M6A12, 48-5M15M6A12
Set Screw Quantity 2
