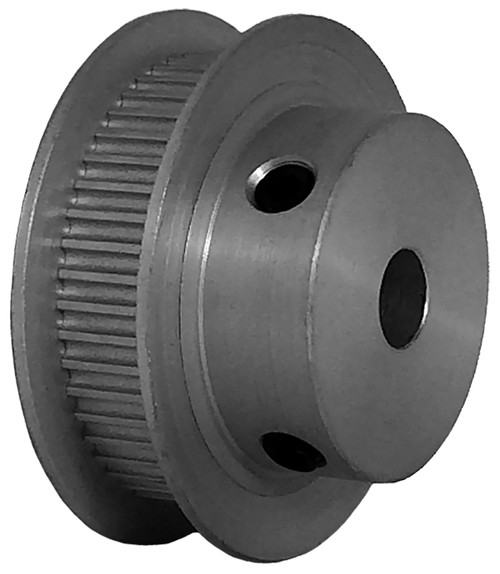

48-2P06-6FA3, Timing Pulley

48-2P06-6FA3 - Aluminum Powerhouse® Pulleys

48-2P06-6FA3

48-2P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48-2P06-6FA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 48-2P06-6FA3
Teeth 48
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.183
Flange Diameter (in) 1.420
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.936
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 31.00
O.D. (mm) 30.00
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference A 6A51-048DF0608, A6A51-048DF0608, 2MR-48S-06, 2MR-48S-06, TP2A3W6-48, 48-2GT06-1A X 1/4, 48-2GT06-1A X 1/4, 48-2P06-6FA3, 48-2P06-6FA3
Set Screw Quantity 2

Comparable to: A 6A51-048DF0608, A6A51-048DF0608, 2MR-48S-06, 2MR-48S-06, TP2A3W6-48, 48-2GT06-1A X 1/4, 48-2GT06-1A X 1/4, 48-2P06-6FA3, 48-2P06-6FA3

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
RoHS Certification
