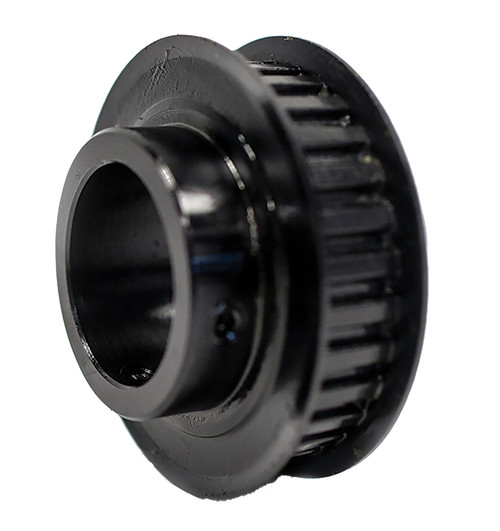

14XL037-6FS3, Timing Pulley

14XL037-6FS3

14XL037-6FS3, Timing Pulley, Steel, Black Oxide

Learn more about 14XL037-6FS3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	14XL037-6FS3
Teeth	14
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.250
Bore Description	1/4 Inch Minimum Plain Bore
Pitch Diameter (in)	0.891
Outside Diameter (in)	0.871
Flange Diameter (in)	1.094
Face Width (in)	0.563
Overall Length (in)	0.812
Hub Diameter (in)	0.563
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	23.00
O.D. (mm)	22.10
MOQ	1
Weight (lb)	0.10
Part Number Cross Reference	A 6C3-14DF03708, A6C3-14DF03708, PB14XL037, 14XL037 1/4 6FS, 14XL037, 14XL037-1S X 1/4, 14XLB037S, 14XL037-1/4, 20181896, 14XL037 X 1/4 MPB, 14XL037, 14XL037MPB, P14XL037, 6495K14, 35375823, P14XL037-PB, 14XL037-6FS3, 113403, 14XL037-6FS3
Set Screw Quantity	2
