12XL025-6FA3 Imperial Pitch Pulleys

12XL025-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 12XL025-6FA3

Comparable to: A 6A3-12DF02508, A6A3-12DF02508, TP20A4W4-12, 12XL025-1A X 1/4

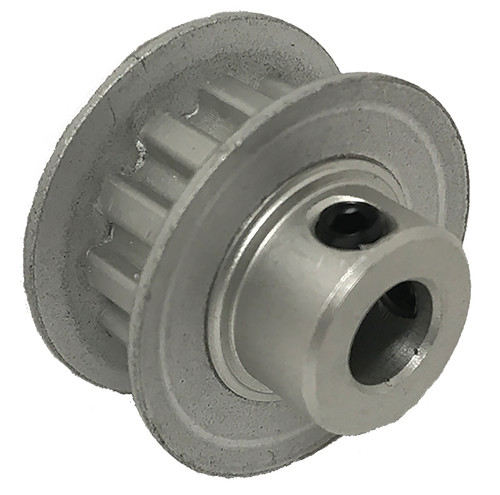

12XL025-6FA3, Timing Pulley, Aluminum, Clear Anodized

Specifications

Product Number 12XL025-6FA3
Teeth 12
Tooth Style XL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Flange Diameter (in) 1.000
Face Width (in) 0.438
Overall Length (in) 0.688
Hub Diameter (in) 0.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.310
Unit System Inch
Max. Bore (in) 0.25
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A3-12DF02508, A6A3-12DF02508, TP20A4W4-12, 12XL025-1A X 1/4
Set Screw Quantity 2
