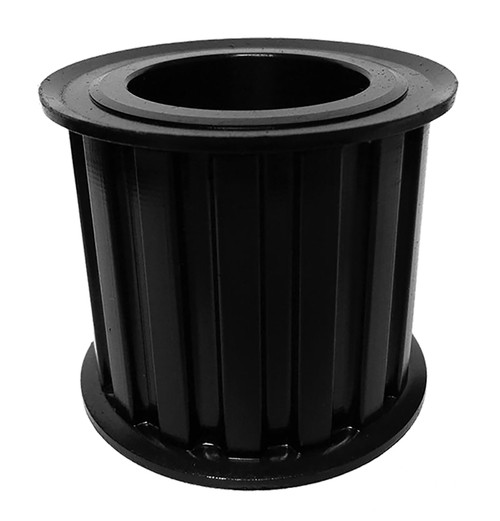

TL48H200, Timing Pulley

TL48H200

TL48H200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL48H200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	TL48H200
Teeth	48
Tooth Style	H
For Belt Width (in)	2.0000
Type	3F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 3020 Bushing
Pitch Diameter (in)	7.639
Outside Diameter (in)	7.585
Flange Diameter (in)	7.867
Face Width (in)	3.375
Overall Length (in)	3.375
Min. Bore (in)	0.875
Pulley Belt Width (in)	3.125
Unit System	Inch
Bushing	3020
P.D. (mm)	194.00
O.D. (mm)	192.70
MOQ	1
Weight (lb)	18.92
Part Number Cross Reference	TL48H200, TB48H200, 48 H 200 TL, TL48H200-3020 DYNA-SYNC SPKT, TL48H200, TL48H200, TB 48-H-200, P48H200-3020, TL48H200, 113734, TL48H200
