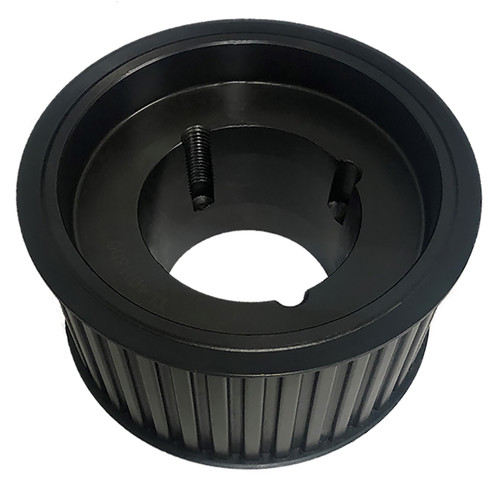

TL30H300, Timing Pulley

TL30H300

TL30H300, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL30H300 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	TL30H300
Teeth	30
Tooth Style	H
For Belt Width (in)	3.0000
Type	E-1
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	4.775
Outside Diameter (in)	4.721
Flange Diameter (in)	5.005
Face Width (in)	3.375
Overall Length (in)	3.375
Min. Bore (in)	0.5
Pulley Belt Width (in)	3.140
Unit System	Inch
Bushing	2012
P.D. (mm)	121.00
O.D. (mm)	119.90
MOQ	1
Weight (lb)	9.58
Part Number Cross Reference	TL30H300, 30 H 300 TL, TL30H300-2012 DYNA-SYNC SPKT, TL30H300, TL30H300, TB 30-H-300, P30H300-2012, TL30H300, 113767, TL30H300
