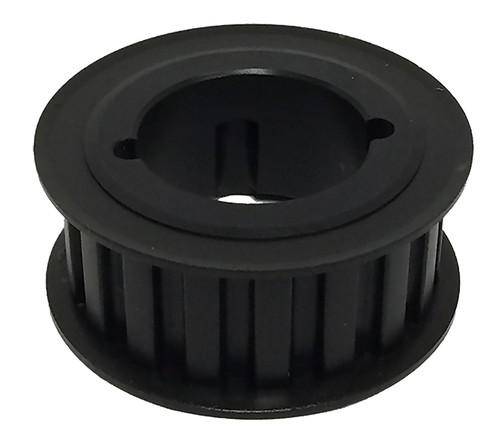

TL22L075-1008, Timing Pulley

TL22L075-1008

TL22L075-1008, Timing Pulley, Steel, Black Oxide,

Learn more about TL22L075-1008 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	TL22L075-1008
Teeth	22
Tooth Style	L
For Belt Width (in)	0.7500
Type	3F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1008 Bushing
Pitch Diameter (in)	2.626
Outside Diameter (in)	2.596
Flange Diameter (in)	2.875
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.820
Unit System	Inch
Bushing	1008
P.D. (mm)	67.00
O.D. (mm)	65.90
MOQ	1
Weight (lb)	1.07
Part Number Cross Reference	TL22L075, TL-22L075-1008, TB22L075, TL22L075 1008, 20182523, TL22L075-1008, TL22L075 1008, TL22L075, TL22L075, TL22L075-1008, TL22L075-1008
