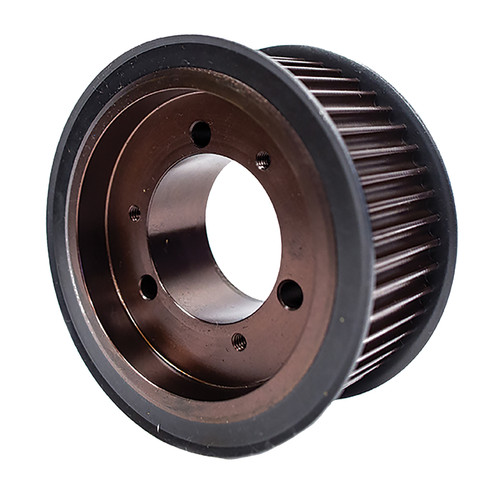

QD64-8M-50, Timing Pulley

QD64-8M-50

QD64-8M-50, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD64-8M-50 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD64-8M-50
Teeth	64
Tooth Style	HTD8mm
For Belt Width (mm)	50.00
Type	D1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	6.416
Outside Diameter (in)	6.364
Flange Diameter (in)	6.772
Face Width (in)	2.375
Overall Length (in)	2.375
Min. Bore (in)	0.5
Pulley Belt Width (in)	2.125
Unit System	Metric
Bushing	SK
P.D. (mm)	163.00
O.D. (mm)	161.70
MOQ	1
Weight (lb)	10.34
Part Number Cross Reference	P648M50-SK, 8M64QD50.SK, B648M50SK, P64-8M-50-SK, 20182433, P64-8M-50-SK HTD SPKT, P648M50, P64-8M-50-SK, P64-8M-50-SK, P64-8M-50, P648M50SK, 3PED9, P64-8M-50-SK, QD64-8M-50, 110750, QD64-8M-50
