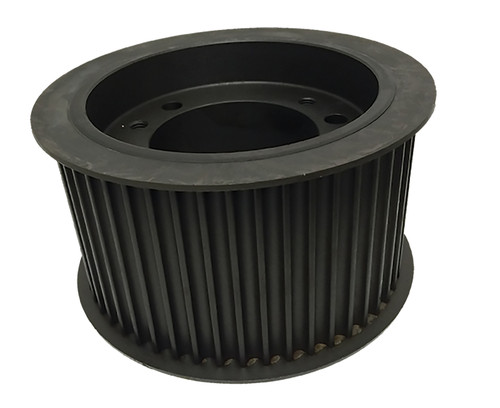

QD56-14M-170, Timing Pulley

QD56-14M-170

QD56-14M-170, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD56-14M-170 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD56-14M-170
Teeth	56
Tooth Style	HTD14mm
For Belt Width (mm)	170.00
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	9.825
Outside Diameter (in)	9.715
Flange Diameter (in)	10.380
Face Width (in)	7.375
Overall Length (in)	7.375
Min. Bore (in)	1
Unit System	Metric
Bushing	F
P.D. (mm)	250.00
O.D. (mm)	246.80
MOQ	1
Weight (lb)	65.00
Part Number Cross Reference	14M56QD170.F, P56-14M-170-F, 20182391, P56-14M-170-F HTD SPKT, P5614M170, P56-14M-170-F, P56-14M-170-F, P56-14M-170, P56-14M-170-F, QD56-14M-170, 110886, QD56-14M-170
