QD52-14M-85, Timing Pulley

QD52-14M-85

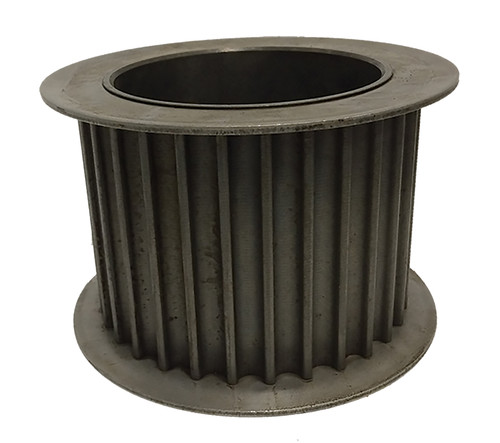

QD52-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD52-14M-85 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD52-14M-85
Teeth	52
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	9.123
Outside Diameter (in)	9.013
Flange Diameter (in)	9.690
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	0.875
Unit System	Metric
Bushing	E
P.D. (mm)	232.00
O.D. (mm)	228.90
MOQ	1
Weight (lb)	32.00
Part Number Cross Reference	14M52QD85.E, P52-14M-85-E, 20182382, P52-14M-85-E HTD SPKT, P5214M85, P52-14M-85-E, P52-14M-85-E, P52-14M-85, P52-14M-85-E, QD52-14M-85, 110840, QD52-14M-85
