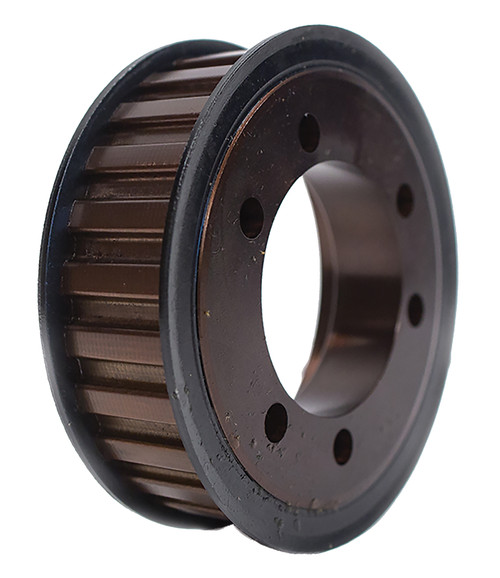

QD46H100, Timing Pulley

QD46H100

QD46H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD46H100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD46H100
Teeth	46
Tooth Style	H
For Belt Width (in)	1.0000
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	7.321
Outside Diameter (in)	7.267
Flange Diameter (in)	7.575
Face Width (in)	1.312
Overall Length (in)	1.312
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
P.D. (mm)	186.00
O.D. (mm)	184.60
MOQ	1
Weight (lb)	11.95
Part Number Cross Reference	46H100SK, 46H100SK, 46H100-SK, 20182103, 46H100, 46H100QD, 46H100-SK, P46H100 SK, 46H100SK, QD46H100, QD46H100
