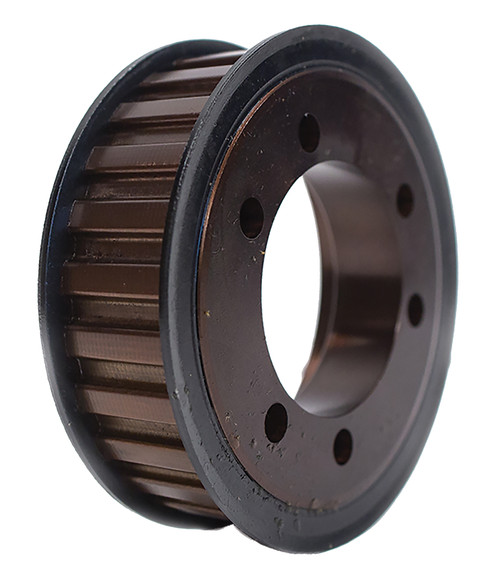

QD42H100, Timing Pulley

QD42H100

QD42H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD42H100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD42H100
Teeth	42
Tooth Style	H
For Belt Width (in)	1.0000
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	6.685
Outside Diameter (in)	6.631
Flange Diameter (in)	7.231
Face Width (in)	1.312
Overall Length (in)	1.312
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
P.D. (mm)	170.00
O.D. (mm)	168.40
MOQ	1
Weight (lb)	9.72
Part Number Cross Reference	42H100SK, 42H100.SK, 42H100SK, 42H100-SK, 20182092, 42H100, 42H100QD, 42H100-SK, P42H100 SK, 42H100SK, QD42H100, QD42H100
