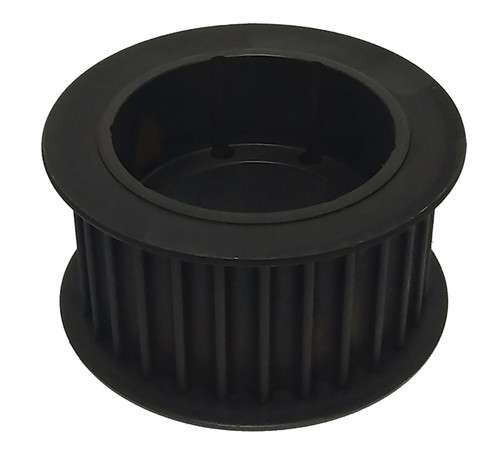

QD40-14M-55, Timing Pulley

QD40-14M-55

QD40-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40-14M-55 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD40-14M-55
Teeth	40
Tooth Style	HTD14mm
For Belt Width (mm)	55.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	7.018
Outside Diameter (in)	6.908
Flange Diameter (in)	7.500
Face Width (in)	2.750
Overall Length (in)	2.750
Min. Bore (in)	0.5
Unit System	Metric
Bushing	SF
P.D. (mm)	178.00
O.D. (mm)	175.50
MOQ	1
Weight (lb)	15.00
Part Number Cross Reference	14M40QD55.SF, P40-14M-55-SF, 20182334, P40-14M-55-SF HTD SPKT, P4014M55, P40-14M-55-SF, P40-14M-55-SF, P40-14M-55, P40-14M-55-SF, QD40-14M-55, 110812, QD40-14M-55
