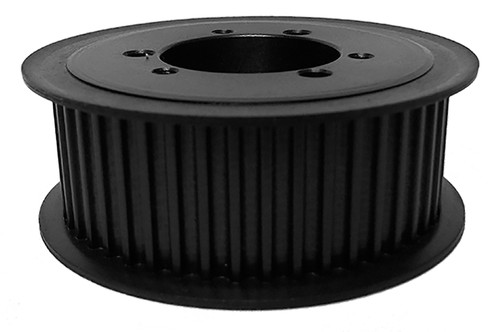

QD38-5M-25, Timing Pulley

QD38-5M-25

QD38-5M-25, Timing Pulley, Steel, Black Oxide,

Learn more about QD38-5M-25 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD38-5M-25
Teeth	38
Tooth Style	HTD5mm
For Belt Width (mm)	25.00
Type	E1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for JA Bushing
Pitch Diameter (in)	2.381
Outside Diameter (in)	2.336
Flange Diameter (in)	2.625
Face Width (in)	1.230
Overall Length (in)	1.230
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.040
Unit System	Metric
Bushing	JA
P.D. (mm)	60.00
O.D. (mm)	59.30
MOQ	1
Weight (lb)	0.94
Part Number Cross Reference	P38-5M-25-JA, P385M25-JA, 5M38QD25.JA, P38-5M-25-JA, 20182324, P38-5M-25-JA HTD SPKT, P385M25, P38-5M-25-JA, P38-5M-25, P385M25JA, QD38-5M-25, 114655, QD38-5M-25
