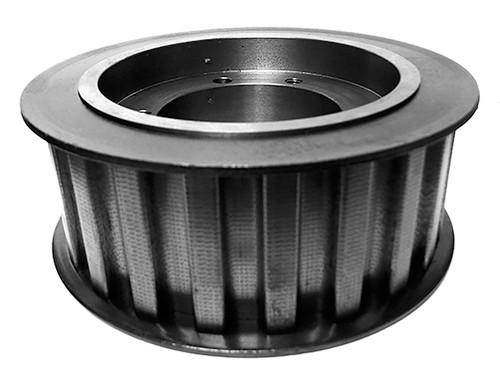

QD36XH200, Timing Pulley

QD36XH200

QD36XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD36XH200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD36XH200
Teeth	36
Tooth Style	XH
For Belt Width (in)	2.0000
Type	D2F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	10.027
Outside Diameter (in)	9.917
Flange Diameter (in)	10.563
Face Width (in)	2.563
Overall Length (in)	3.156
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
P.D. (mm)	255.00
O.D. (mm)	251.90
MOQ	1
Weight (lb)	31.98
Part Number Cross Reference	36H200SK, 36XH200E, 36XH200-E, 20182068, 36XH200, 36XH200QD, 36XH200-E, P36XH200 E, 36XH200E, QD36XH200, QD36XH200
