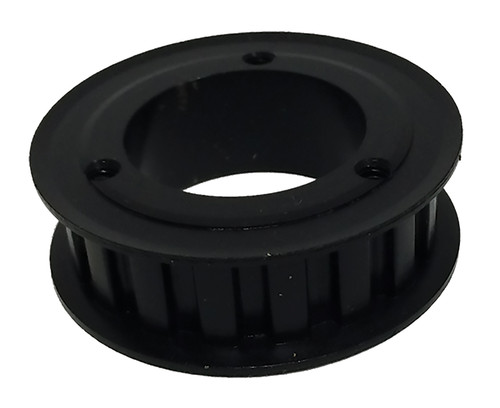

QD36L050, Timing Pulley

QD36L050

QD36L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD36L050 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD36L050
Teeth	36
Tooth Style	L
For Belt Width (in)	0.5000
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SDS Bushing
Pitch Diameter (in)	4.297
Outside Diameter (in)	4.267
Flange Diameter (in)	4.520
Face Width (in)	0.750
Overall Length (in)	0.750
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.570
Unit System	Inch
Bushing	SDS
P.D. (mm)	109.00
O.D. (mm)	108.40
MOQ	1
Weight (lb)	1.99
Part Number Cross Reference	36L050-SDS, 36L050SDS, 36L050.SDS, 36L050SDS, 36L050-SDS, 20182065, 36L050QD, 36L050-SDS, P36L050 SDS, 36L050SDS, 6495K219, Q36L050, QD36L050, QD36L050
