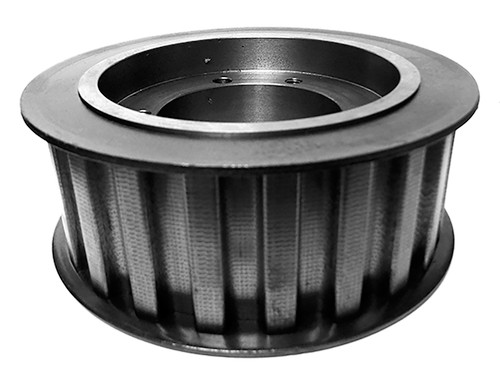

QD34XXH200, Timing Pulley

QD34XXH200

QD34XXH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD34XXH200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD34XXH200
Teeth	34
Tooth Style	XXH
For Belt Width (in)	2.0000
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	13.528
Outside Diameter (in)	13.408
Flange Diameter (in)	14.250
Face Width (in)	2.563
Overall Length (in)	2.563
Min. Bore (in)	1
Unit System	Inch
Bushing	F
P.D. (mm)	344.00
O.D. (mm)	340.60
MOQ	1
Weight (lb)	56.00
Part Number Cross Reference	34XXH200F, 34XXH200F, 34XXH200-F, 20182055, 34XXH200, 34XXH300QD, 34XXH200-F, P34XXH200 F, 34XXH200F, Q34XXH200, QD34XXH200, QD34XXH200
