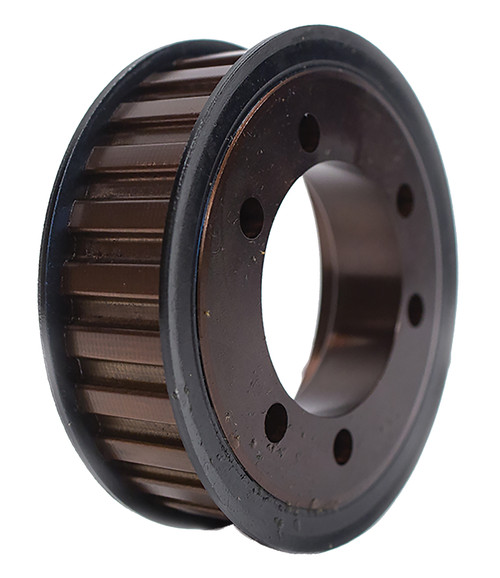

QD34H100, Timing Pulley

QD34H100 - Cast Iron Imperial Pitch Pulleys

QD34H100

QD34H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD34H100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number QD34H100
Teeth 34
Tooth Style H
For Belt Width (in) 1.0000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.411
Outside Diameter (in) 5.357
Flange Diameter (in) 5.959
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 137.00
O.D. (mm) 136.10
MOQ 1
Weight (lb) 5.58
Part Number Cross Reference 34H100SK, 34H100.SK, 34H100SK, 34H100-SK, 20182054, 34H100, 34H100QD, 34H100-SK, P34H100 SK, 34H100SK, QD34H100, QD34H100

Comparable to: 34H100SK, 34H100.SK, 34H100SK, 34H100-SK, 20182054, 34H100, 34H100QD, 34H100-SK, P34H100 SK, 34H100SK, QD34H100, QD34H100
