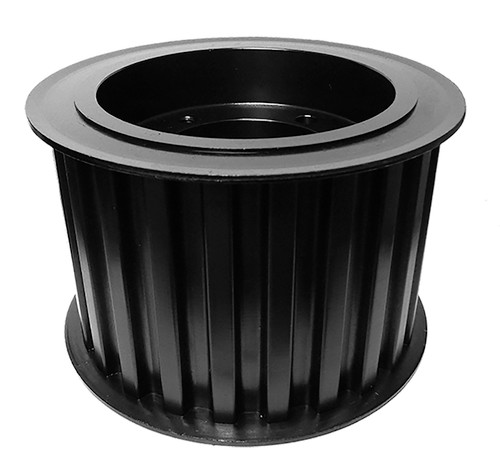

QD32XH400, Timing Pulley

QD32XH400

QD32XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32XH400 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD32XH400
Teeth	32
Tooth Style	XH
For Belt Width (in)	4.0000
Type	A2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	8.913
Outside Diameter (in)	8.803
Flange Diameter (in)	9.438
Face Width (in)	4.688
Overall Length (in)	5.156
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
P.D. (mm)	226.00
O.D. (mm)	223.60
MOQ	1
Weight (lb)	34.00
Part Number Cross Reference	32XH400E, 32XH400E, 32XH400-E, 20182052, 32XH400, 32XH400QD, 32XH400-E, P32XH400 E, 32XH400E, Q32XH400, QD32XH400, QD32XH400
