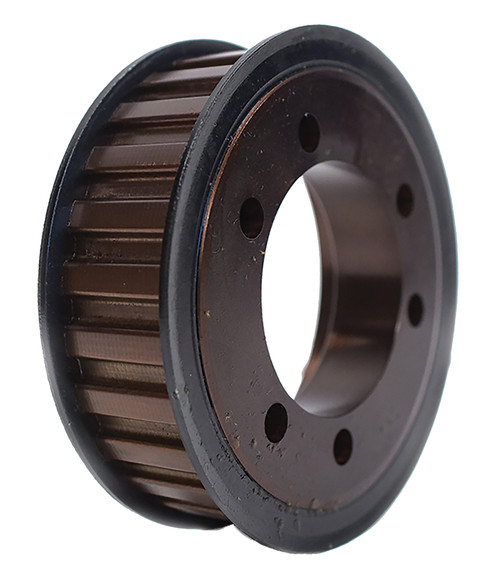

QD31H100, Timing Pulley

QD31H100

QD31H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD31H100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD31H100
Teeth	31
Tooth Style	H
For Belt Width (in)	1.0000
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SD Bushing
Pitch Diameter (in)	4.934
Outside Diameter (in)	4.880
Flange Diameter (in)	5.320
Face Width (in)	1.312
Overall Length (in)	1.312
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
P.D. (mm)	125.00
O.D. (mm)	123.90
MOQ	1
Weight (lb)	5.07
Part Number Cross Reference	31H100SD, 31H100.SD, 31H100SD, 31H100-SD, 20182040, 31H100, 31H100QD, 31H100-SD, P31H100 SD, 31H100SD, QD31H100, QD31H100
