QD30XH400, Timing Pulley

QD30XH400

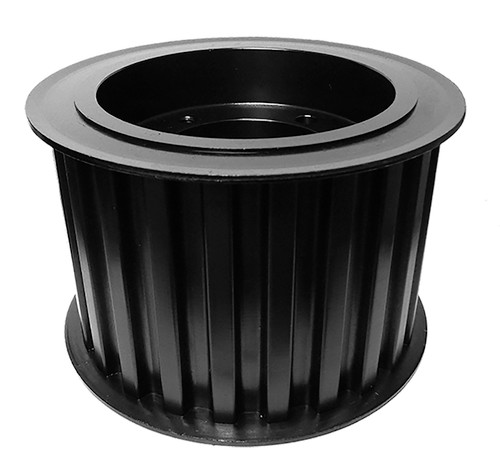

QD30XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30XH400 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD30XH400
Teeth	30
Tooth Style	XH
For Belt Width (in)	4.0000
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	8.356
Outside Diameter (in)	8.246
Flange Diameter (in)	8.875
Face Width (in)	4.688
Overall Length (in)	5.156
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
P.D. (mm)	212.00
O.D. (mm)	209.40
MOQ	1
Weight (lb)	30.00
Part Number Cross Reference	30XH400E, 30XH400E, 30XH400-E, 20182034, 30XH400, 30XH400QD, 30XH400-E, P30XH400 E, 30XH400E, Q30XH400, QD30XH400, QD30XH400
