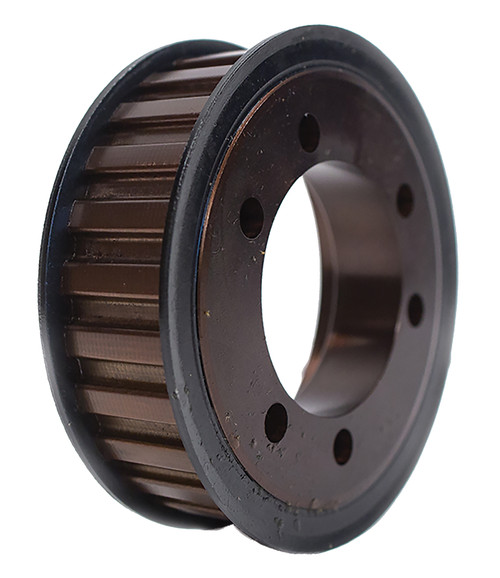

QD29H100, Timing Pulley

QD29H100

QD29H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD29H100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD29H100
Teeth	29
Tooth Style	H
For Belt Width (in)	1.0000
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SD Bushing
Pitch Diameter (in)	4.615
Outside Diameter (in)	4.561
Flange Diameter (in)	5.000
Face Width (in)	1.312
Overall Length (in)	1.312
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
P.D. (mm)	117.00
O.D. (mm)	115.90
MOQ	1
Weight (lb)	4.22
Part Number Cross Reference	29H100SD, 29H100.SD, 29H100SD, 29H100-SDS, 20182023, 29H100, 29H100QD, 29H100-SDS, P29H100 SD, 29H100SD, QD29H100, QD29H100
