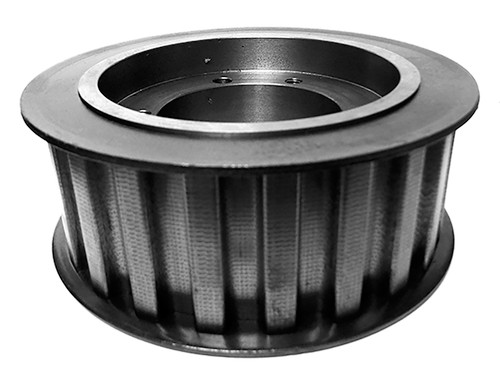

QD28XH200, Timing Pulley

QD28XH200

QD28XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD28XH200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD28XH200
Teeth	28
Tooth Style	XH
For Belt Width (in)	2.0000
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	7.799
Outside Diameter (in)	7.689
Flange Diameter (in)	8.375
Face Width (in)	2.563
Overall Length (in)	3.156
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
P.D. (mm)	198.00
O.D. (mm)	195.30
MOQ	1
Weight (lb)	16.89
Part Number Cross Reference	28H200SD, 28XH200E, 28XH200-E, 20182019, 28XH200, 28XH200QD, 28XH200-E, P28XH200 E, 28XH200E, Q28XH200, QD28XH200, QD28XH200
