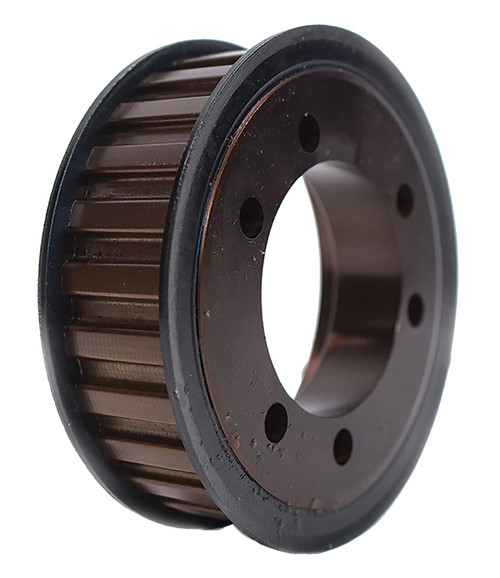

QD27H100, Timing Pulley

QD27H100

QD27H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD27H100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD27H100
Teeth	27
Tooth Style	H
For Belt Width (in)	1.0000
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SDS Bushing
Pitch Diameter (in)	4.297
Outside Diameter (in)	4.243
Flange Diameter (in)	4.687
Face Width (in)	1.312
Overall Length (in)	1.312
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SDS
P.D. (mm)	109.00
O.D. (mm)	107.80
MOQ	1
Weight (lb)	2.69
Part Number Cross Reference	27H100SDS, 27H100.SDS, 27H100SDS, 27H100-SDS, 20182011, 27H100, 27H100QD, 27H100-SDS, P27H100 SDS, 27H100SDS, QD27H100, QD27H100
