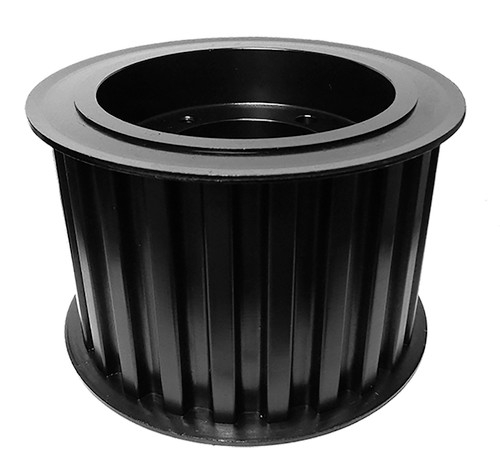

QD24XXH400, Timing Pulley

QD24XXH400

QD24XXH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD24XXH400 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD24XXH400
Teeth	24
Tooth Style	XXH
For Belt Width (in)	4.0000
Type	A2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	9.549
Outside Diameter (in)	9.429
Flange Diameter (in)	10.313
Face Width (in)	2.625
Overall Length (in)	3.156
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
P.D. (mm)	243.00
O.D. (mm)	239.50
MOQ	1
Weight (lb)	44.00
Part Number Cross Reference	24XXH400E, 24XXH400E, 24XXH400-E, 20181993, 24XXH400, 30XXH500QD, 24XXH400-E, P24XXH400 E, 24XXH400E, Q24XXH400, QD24XXH400, QD24XXH400
