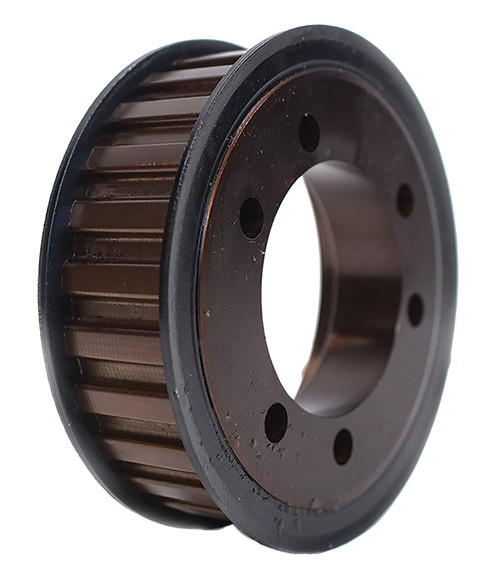

QD18H200, Timing Pulley

QD18H200

QD18H200, Timing Pulley, Steel, Black Oxide

Learn more about QD18H200 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	QD18H200
Teeth	18
Tooth Style	H
For Belt Width (in)	2.0000
Type	E1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SH Bushing
Pitch Diameter (in)	2.865
Outside Diameter (in)	2.811
Flange Diameter (in)	3.100
Face Width (in)	2.344
Overall Length (in)	2.344
Min. Bore (in)	0.5
Pulley Belt Width (in)	2.094
Unit System	Inch
Bushing	SH
P.D. (mm)	73.00
O.D. (mm)	71.40
MOQ	1
Weight (lb)	1.99
Part Number Cross Reference	18H200SH, 18H200.SH, 18H200SH, 18H200-SH, 20181915, 18H200, 18H200QD, 18H200-SH, P18H200 SH, 18H200SH, Q18H200, QD18H200, QD18H200
