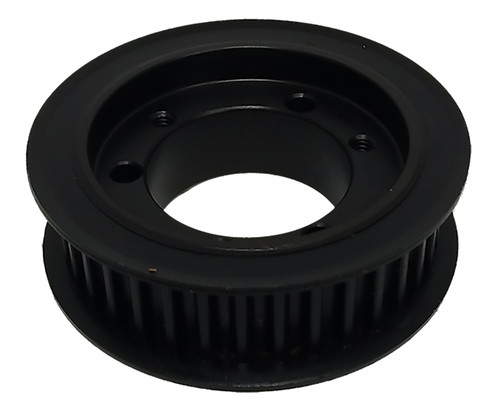

F42-8MX21-SH, Timing Pulley

F42-8MX21-SH

F42-8MX21-SH, Timing Pulley, Cast Iron, Black Oxide

Toronto Gear carries F42-8MX21-SH to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F42-8MX21-SH
Teeth	42
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	AF-1
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SH Bushing
Pitch Diameter (in)	4.211
Outside Diameter (in)	4.148
Flange Diameter (in)	4.687
Face Width (in)	1.250
Overall Length (in)	1.250
Hub Diameter (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SH
P.D. (mm)	107.00
O.D. (mm)	105.40
A (in)	3.440
C (in)	0.960
D (in)	0.812
F (in)	1.203
M (in)	0.391
MOQ	1
Weight (lb)	2.65
Part Number Cross Reference	F8M-42S-21, F8MX42S21-SH, 42G-8M-21-SH, F8MX-42S-21 SH FIN FAN, F8MX42S21-SH, F42-8MX21-SH, 482202, F42-8MX21-SH
