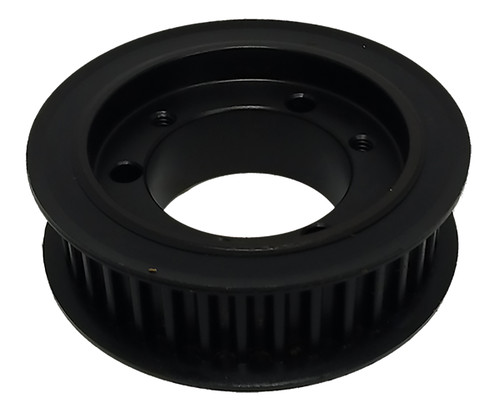

F38-8MX21-SH, Timing Pulley

F38-8MX21-SH

F38-8MX21-SH, Timing Pulley, Cast Iron, Black Oxide,

Toronto Gear carries F38-8MX21-SH to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F38-8MX21-SH
Teeth	38
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	AF-1
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SH Bushing
Pitch Diameter (in)	3.810
Outside Diameter (in)	3.747
Flange Diameter (in)	4.156
Face Width (in)	1.203
Overall Length (in)	1.203
Hub Diameter (in)	2.100
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SH
P.D. (mm)	97.00
O.D. (mm)	95.20
A (in)	3.040
C (in)	0.960
D (in)	0.812
F (in)	1.203
M (in)	0.391
MOQ	1
Weight (lb)	1.98
Part Number Cross Reference	F8M-38S-21, F8MX38S21-SH, 38G-8M-21-SH, F8MX-38S-21 SH FIN FAN, F8MX38S21-SH, F38-8MX21-SH, 482200, F38-8MX21-SH
