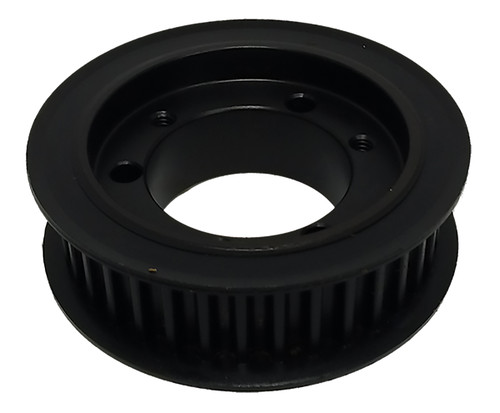

F36-8MX21-SH, Timing Pulley

F36-8MX21-SH

F36-8MX21-SH, Timing Pulley, Cast Iron, Black Oxide,

Toronto Gear carries F36-8MX21-SH to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F36-8MX21-SH
Teeth	36
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	AF-1
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SH Bushing
Pitch Diameter (in)	3.609
Outside Diameter (in)	3.546
Flange Diameter (in)	3.938
Face Width (in)	1.203
Overall Length (in)	1.203
Hub Diameter (in)	2.100
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SH
P.D. (mm)	92.00
O.D. (mm)	90.10
A (in)	2.850
C (in)	0.960
D (in)	0.812
F (in)	1.203
M (in)	0.391
MOQ	1
Weight (lb)	1.69
Part Number Cross Reference	F8M-36S-21, F8MX36S21-SH, 36G-8M-21-SH, F8MX-36S-21 SH FIN FAN, F8MX36S21-SH, F36-8MX21-SH, 482199, F36-8MX21-SH
