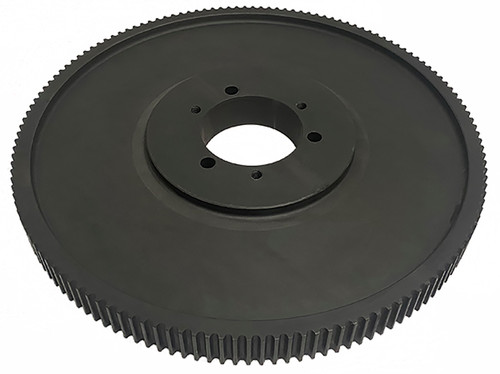

F180-8MX21-SF, Timing Pulley

F180-8MX21-SF

F180-8MX21-SF, Timing Pulley, Cast Iron, Black Oxide

Toronto Gear carries F180-8MX21-SF to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F180-8MX21-SF
Teeth	180
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	C-3
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	18.046
Outside Diameter (in)	17.983
Face Width (in)	1.203
Overall Length (in)	2.000
Hub Diameter (in)	36.600
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
P.D. (mm)	458.00
O.D. (mm)	456.80
A (in)	16.969
B (in)	6.375
C (in)	1.200
D (in)	1.250
F (in)	1.2
M (in)	0.05
MOQ	1
Weight (lb)	36.60
Part Number Cross Reference	F8M-180S-21, F8MX180S21-SF, 180G-8M-21-SF, F8MX-180S-21 SF FIN FAN, F8MX180S21-SF, F180-8MX21-SF, 482205, F180-8MX21-SF
