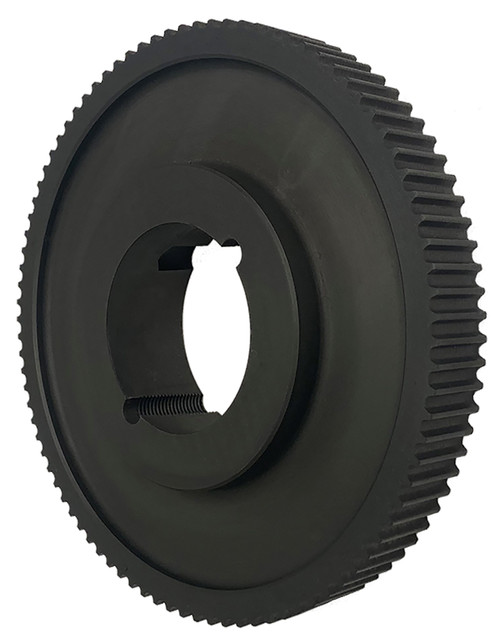

90-8P20-2517, Timing Pulley

90-8P20-2517 - Cast Iron Powerhouse® Pulleys

90-8P20-2517

90-8P20-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 90-8P20-2517 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	90-8P20-2517
Teeth	90
Tooth Style	8P
For Belt Width (mm)	20.00
Type	C-2
Material	Ductile Iron
Finish	Black Oxide
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	9.023
Outside Diameter (in)	8.969
Face Width (in)	1.130
Overall Length (in)	1.750
Min. Bore (in)	0.5
Unit System	Inch
Bushing	2517
P.D. (mm)	229.00
O.D. (mm)	227.80
MOQ	1
Weight (lb)	12.39
Part Number Cross Reference	P90-8MGT-20, B908M20TL, P90-8M-20-2517, 20182879, P90-8M-20-2517 HT250 SPKT, P908M20TL, 90-8P20-2517, 112866, 90-8P20-2517

Comparable to: P90-8MGT-20, B908M20TL, P90-8M-20-2517, 20182879, P90-8M-20-2517 HT250 SPKT, P908M20TL, 90-8P20-2517, 112866, 90-8P20-2517
