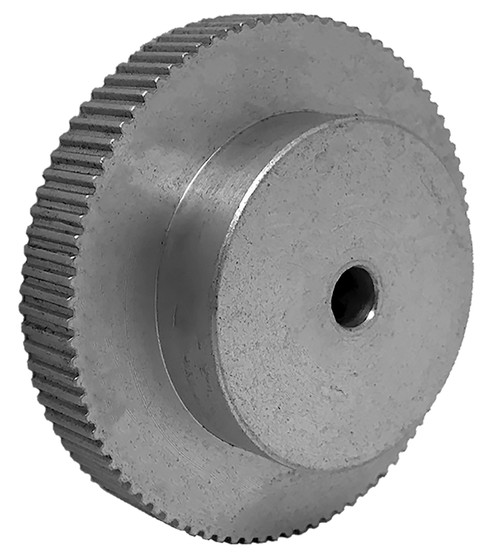

84LT187-6A5, Timing Pulley

84LT187-6A5 - Aluminum Imperial Pitch Pulleys

84LT187-6A5

84LT187-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 84LT187-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	84LT187-6A5
Teeth	84
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	2.182
Outside Diameter (in)	2.162
Face Width (in)	0.750
Overall Length (in)	1.500
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	55.00
O.D. (mm)	54.90
MOQ	1
Weight (lb)	0.19
Part Number Cross Reference	A 6A6-84NF01812, A6A6-84NF01812, 84LT-187 X 3/8-6, 84M187-2A X 3/8, 84LT187-6A5, 84LT187-6A5
Set Screw Quantity	2

Comparable to: A 6A6-84NF01812, A6A6-84NF01812, 84LT-187 X 3/8-6, 84M187-2A X 3/8, 84LT187-6A5, 84LT187-6A5

Documentation

Download Catalog

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide

For custom parts click here

RoHS Certification
