80MP037M6A8, Timing Pulley

80MP037M6A8 - Aluminum Metric Pulleys

80MP037M6A8

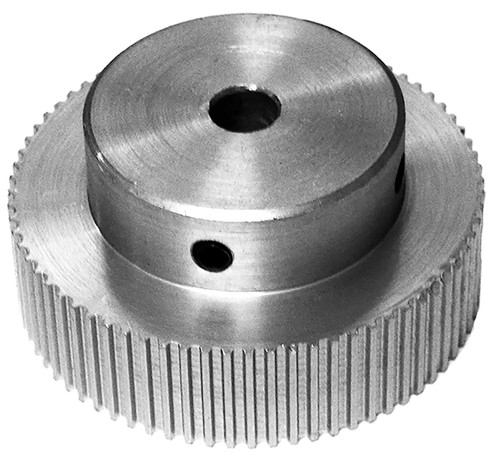

80MP037M6A8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 80MP037M6A8 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 80MP037M6A8
Teeth 80
Tooth Style MXL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Face Width (in) 0.500
Pulley Belt Width (mm) 12.70
Unit System Metric
P.D. (mm) 52.00
O.D. (mm) 51.20
Overall Length (mm) 22.20
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.23
Part Number Cross Reference A 6A16M080NF9508, A6A16M080NF9508, 80MP037M6A8, 80MP037M6A8
Set Screw Quantity 2
