80LT312-6A5, Timing Pulley

80LT312-6A5 - Aluminum Imperial Pitch Pulleys

80LT312-6A5

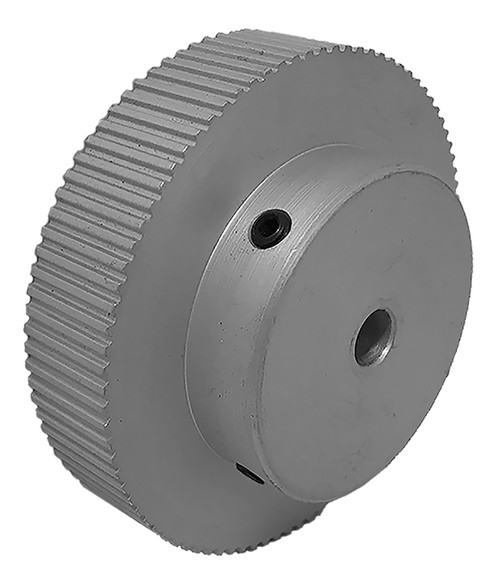

80LT312-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 80LT312-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	80LT312-6A5
Teeth	80
Tooth Style	LT
For Belt Width (in)	0.3125
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	2.078
Outside Diameter (in)	2.058
Face Width (in)	0.875
Overall Length (in)	1.396
Hub Diameter (in)	1.396
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	53.00
O.D. (mm)	52.30
MOQ	1
Weight (lb)	0.21
Part Number Cross Reference	A 6A6-80NF03112, A6A6-80NF03112, 80LT-312 X 3/8 6, 80M312-2A X 3/8, 80LT312-6A5, 80LT312-6A5
Set Screw Quantity	2

Comparable to: A 6A6-80NF03112, A6A6-80NF03112, 80LT-312 X 3/8 6, 80M312-2A X 3/8, 80LT312-6A5, 80LT312-6A5

Documentation

Download Catalog

General Characteristics

Pulley Tolerances

Part Number Nomenclature Chart

Drive Alignment Guide

For custom parts click here

RoHS Certification
