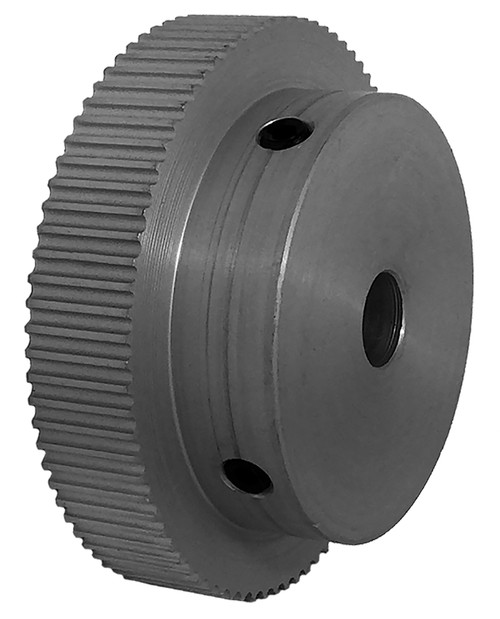

80-2P06-6A4, Timing Pulley

80-2P06-6A4

80-2P06-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 80-2P06-6A4 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	80-2P06-6A4
Teeth	80
Tooth Style	2P
For Belt Width (mm)	6.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.313
Bore Description	5/16 Inch Finished Bore
Pitch Diameter (in)	2.005
Outside Diameter (in)	1.985
Face Width (in)	0.375
Overall Length (in)	0.750
Hub Diameter (in)	1.500
Min. Bore (in)	0.3125
Pulley Belt Width (in)	0.375
Unit System	Inch
P.D. (mm)	51.00
O.D. (mm)	50.40
MOQ	1
Weight (lb)	0.18
Part Number Cross Reference	A 6A51-080NF0610, A6A51-080NF0610, 2MR-80S-06, 2MR-80S-06, TP2A3H6-80, 80-2GT06-2A X 5/16, 80-2GT06-2A X 5/16, 80-2P06-6A4, 80-2P06-6A4
Set Screw Quantity	2
