80-14MX90-4030, Timing Pulley

80-14MX90-4030

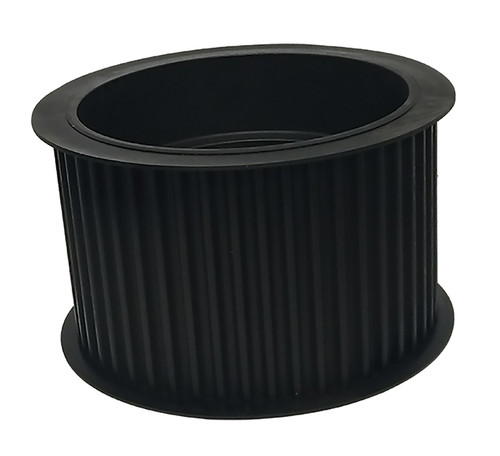

80-14MX90-4030, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 80-14MX90-4030 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Product Number	80-14MX90-4030
Teeth	80
Tooth Style	14MX
For Belt Width (mm)	90.00
Type	D1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 4030 Bushing
Pitch Diameter (in)	14.036
Outside Diameter (in)	13.926
Flange Diameter (in)	14.625
Face Width (in)	4.203
Overall Length (in)	4.203
Min. Bore (in)	1.5
Pulley Belt Width (in)	3.880
Unit System	Inch
Bushing	4030
P.D. (mm)	356.00
O.D. (mm)	353.70
MOQ	1
Weight (lb)	94.00
Part Number Cross Reference	14MX-80S-90, 14MX80S90-4030, TB 14M-80S-90, B14MCS-80-90, 80G-14M-90-4030, 14MX-80S-90-4030 HT500 SPKT, 14MPC80S90, GTR-80G-14M-90, GTR-80G-14M-90, 14MX80S90-4030, 80-14MX90-4030, 482158, 80-14MX90-4030
