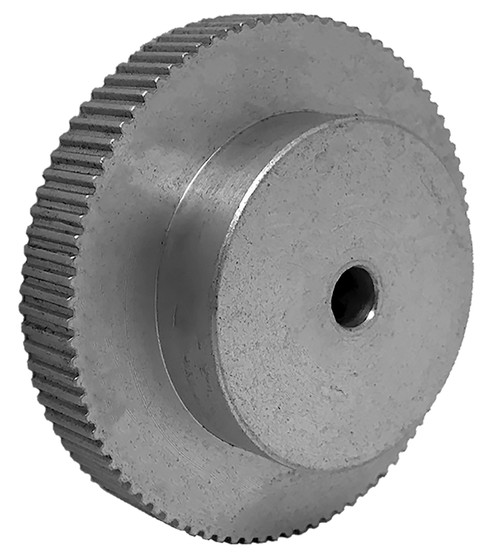

75LT187-6A5, Timing Pulley

75LT187-6A5 - Aluminum Imperial Pitch Pulleys

75LT187-6A5

75LT187-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 75LT187-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	75LT187-6A5
Teeth	75
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	1.948
Outside Diameter (in)	1.928
Face Width (in)	0.750
Overall Length (in)	1.266
Hub Diameter (in)	1.266
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	50.00
O.D. (mm)	49.00
MOQ	1
Weight (lb)	0.15
Part Number Cross Reference	A 6A6-75NF01812, A6A6-75NF01812, 75LT-187 X 3/8-6, 75M187-2A X 3/8, 75LT187-6A5, 75LT187-6A5
Set Screw Quantity	2

Comparable to: A 6A6-75NF01812, A6A6-75NF01812, 75LT-187 X 3/8-6, 75M187-2A X 3/8, 75LT187-6A5, 75LT187-6A5
