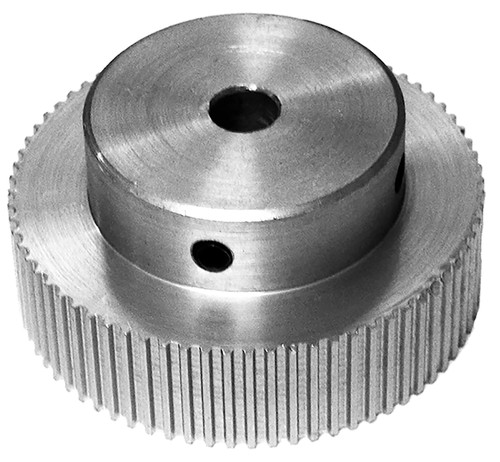

72MP037-6A3, Timing Pulley

72MP037-6A3 - Aluminum Imperial Pitch Pulleys

72MP037-6A3

72MP037-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72MP037-6A3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	72MP037-6A3
Teeth	72
Tooth Style	MXL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.833
Outside Diameter (in)	1.813
Face Width (in)	0.500
Overall Length (in)	0.875
Hub Diameter (in)	1.195
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.500
Unit System	Inch
P.D. (mm)	47.00
O.D. (mm)	46.10
MOQ	1
Weight (lb)	0.17
Part Number Cross Reference	A 6A16-072NF3708, A6A16-072NF3708, 72MP-037 1/4 6, 72MXL037-2A X 1/4, 72MP037-6A3, 72MP037-6A3
Set Screw Quantity	2

Comparable to: A 6A16-072NF3708, A6A16-072NF3708, 72MP-037 1/4 6, 72MXL037-2A X 1/4, 72MP037-6A3, 72MP037-6A3
