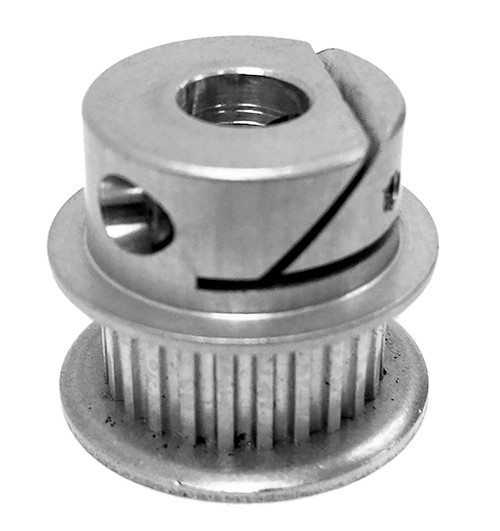

72MP025-IA3, Timing Pulley

72MP025-IA3 - E-Z Lock Hub Aluminum Imperial Pitch Pulleys

72MP025-IA3

72MP025-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72MP025-IA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 72MP025-IA3
Teeth 72
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6I
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.833
Outside Diameter (in) 1.813
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 47.00
O.D. (mm) 46.10
Number & Screw Size 1 x 4-40
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6D16-072NF2508, 72MP025-IA3, 72MP025-IA3
