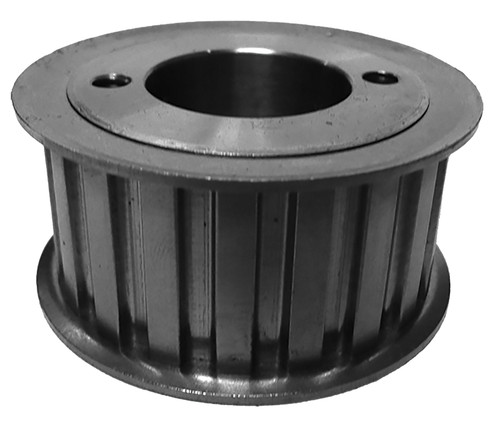

72LH100, Timing Pulley

72LH100 - Cast Iron Imperial Pitch Pulleys

72LH100

72LH100, Timing Pulley, Cast Iron

Learn more about 72LH100 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 72LH100
Teeth 72
Tooth Style L
For Belt Width (in) 1.0000
Type 18
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 8.594
Outside Diameter (in) 8.564
Face Width (in) 1.250
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 218.00
O.D. (mm) 217.50
MOQ 1
Weight (lb) 5.81
Part Number Cross Reference 72LH100, 72LH100, 72LH100
