72-5M09M6A12, Timing Pulley

72-5M09M6A12 - Aluminum Powerhouse®HTD® Pulleys

72-5M09M6A12

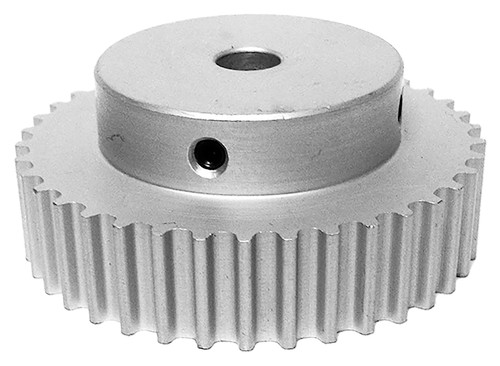

72-5M09M6A12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 72-5M09M6A12 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 72-5M09M6A12
Teeth 72
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 4.511
Outside Diameter (in) 4.466
Face Width (in) 0.546
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 115.00
O.D. (mm) 113.40
Face Width (mm) 13.90
Overall Length (mm) 23.80
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.60
Part Number Cross Reference A AMNF, A6A25M072NF0912, 72-5M09M6A12, 72-5M09M6A12
Set Screw Quantity 2
