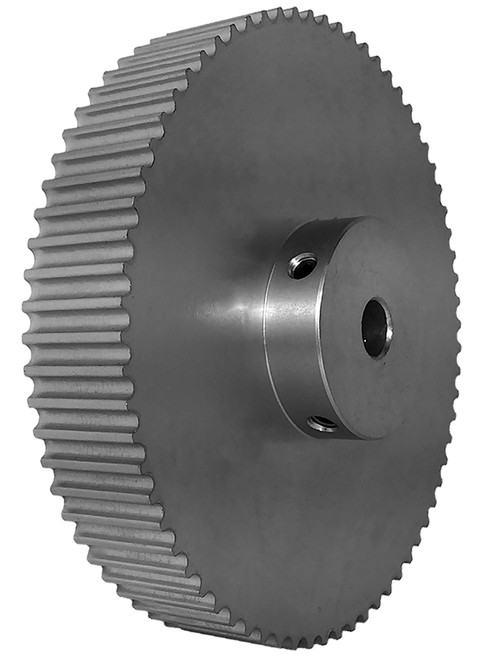

70-5P15-6A5, Timing Pulley

70-5P15-6A5 - Aluminum Powerhouse® Pulleys

70-5P15-6A5

70-5P15-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 70-5P15-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 70-5P15-6A5
Teeth 70
Tooth Style 5P
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 4.386
Outside Diameter (in) 4.341
Face Width (in) 0.781
Overall Length (in) 1.187
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 111.00
O.D. (mm) 110.30
MOQ 1
Weight (lb) 1.20
Part Number Cross Reference A 6A55-070NF1516, A6A55-070NF1516, P70-5MGT-15AL, 70-5P15-6A5
Set Screw Quantity 2
