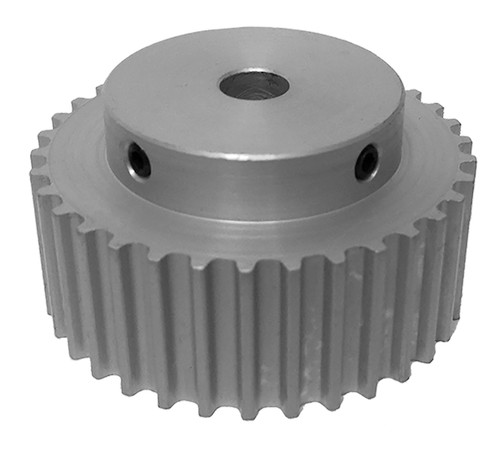

70-5M15M6A12, Timing Pulley

70-5M15M6A12 - Aluminum Powerhouse®HTD® Pulleys

70-5M15M6A12

70-5M15M6A12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 70-5M15M6A12 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 70-5M15M6A12
Teeth 70
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 4.386
Outside Diameter (in) 4.341
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 111.00
O.D. (mm) 110.30
Face Width (mm) 19.80
Overall Length (mm) 30.10
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.75
Part Number Cross Reference A 6A25M070NF1512, A6A25M070NF1512, 70-5M15M6A12
Set Screw Quantity 2
