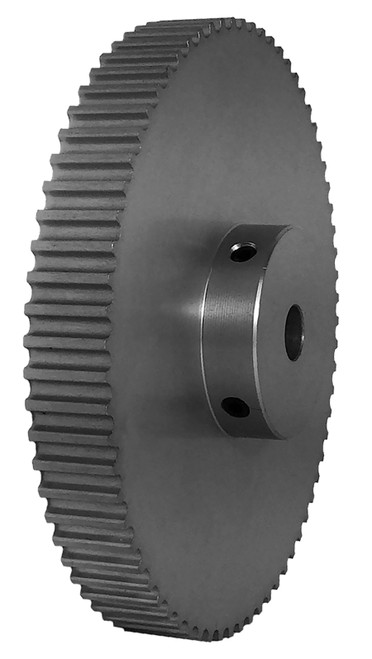

70-5M09-6A5, Timing Pulley

70-5M09-6A5 - Aluminum Powerhouse®HTD® Pulleys


70-5M09-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 70-5M09-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.


Product Number 70-5M09-6A5
Teeth 70
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 4.386
Outside Diameter (in) 4.341
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 111.00
O.D. (mm) 110.30
Weight (lb) 0.84
Part Number Cross Reference A 6A25-070NF0912, A6A25-070NF0912, P70-5M-09AL, 70-5M09-6A5
Set Screw Quantity 2
