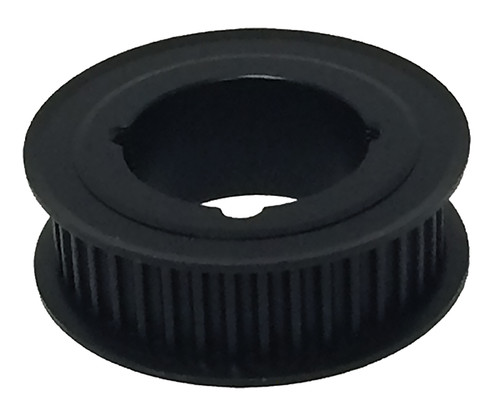

68-5MX15-1610, Timing Pulley

68-5MX15-1610 - Cast Iron Powerhouse® MX Pulleys

68-5MX15-1610

68-5MX15-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 68-5MX15-1610 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number 68-5MX15-1610
Teeth 68
Tooth Style 5MX
For Belt Width (mm) 15.00
Type B1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 4.261
Outside Diameter (in) 4.216
Flange Diameter (in) 4.520
Face Width (in) 0.880
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.710
Unit System Inch
Bushing 1610
P.D. (mm) 108.00
O.D. (mm) 107.10
MOQ 1
Weight (lb) 2.10
Part Number Cross Reference 68-5MX15-1610, 68-5MX15-1610
