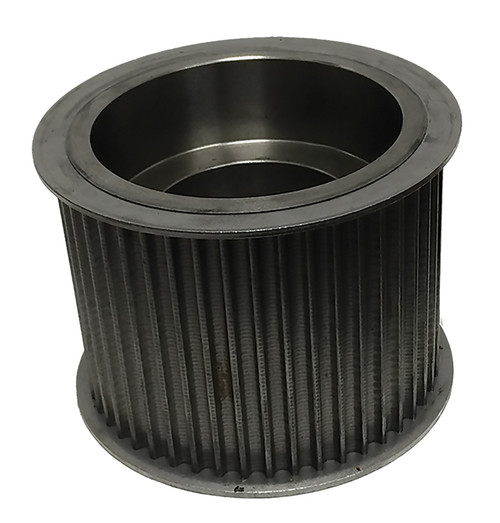

64-8P85-2517, Timing Pulley

64-8P85-2517 - Cast Iron Powerhouse® Pulleys

64-8P85-2517

64-8P85-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-8P85-2517 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	64-8P85-2517
Teeth	64
Tooth Style	8P
For Belt Width (mm)	85.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	6.416
Outside Diameter (in)	6.362
Flange Diameter (in)	6.772
Face Width (in)	3.750
Overall Length (in)	3.750
Min. Bore (in)	0.5
Pulley Belt Width (in)	3.500
Unit System	Inch
Bushing	2517
P.D. (mm)	163.00
O.D. (mm)	161.60
MOQ	1
Weight (lb)	13.97
Part Number Cross Reference	P64-8MGT-85, B648M85TL, P64-8M-85-2517, 20182854, P64-8M-85-2517 HT250 SPKT, P648M85TL, 64-8P85-2517, 114507, 64-8P85-2517

Comparable to: P64-8MGT-85, B648M85TL, P64-8M-85-2517, 20182854, P64-8M-85-2517 HT250 SPKT, P648M85TL, 64-8P85-2517, 114507, 64-8P85-2517
