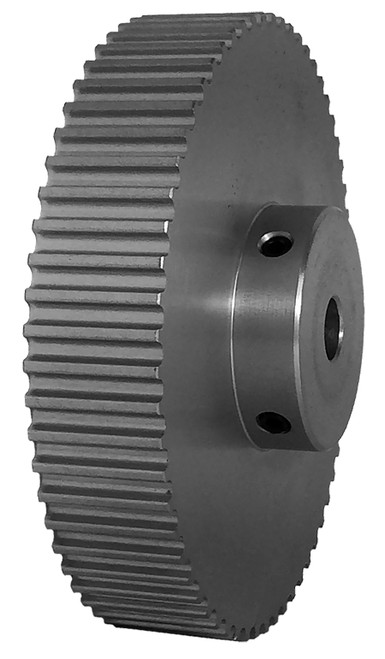

62-5M15-6A5, Timing Pulley

62-5M15-6A5 - Aluminum Powerhouse®HTD® Pulleys

62-5M15-6A5

62-5M15-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 62-5M15-6A5 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	62-5M15-6A5
Teeth	62
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	3.885
Outside Diameter (in)	3.840
Face Width (in)	0.781
Overall Length (in)	1.187
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	99.00
O.D. (mm)	97.50
MOQ	1
Weight (lb)	0.55
Part Number Cross Reference	A 6A25-062NF1512, A6A25-062NF1512, P62-5M-15AL, 62M5-L015-6, 62-5M-15 X 3/8, 62-5M15-6A5, 62-5M15-6A5
Set Screw Quantity	2

Comparable to: A 6A25-062NF1512, A6A25-062NF1512, P62-5M-15AL, 62M5-L015-6, 62-5M-15 X 3/8, 62-5M15-6A5, 62-5M15-6A5
