60MP037-6FA3, Timing Pulley

60MP037-6FA3 - Aluminum Imperial Pitch Pulleys

60MP037-6FA3

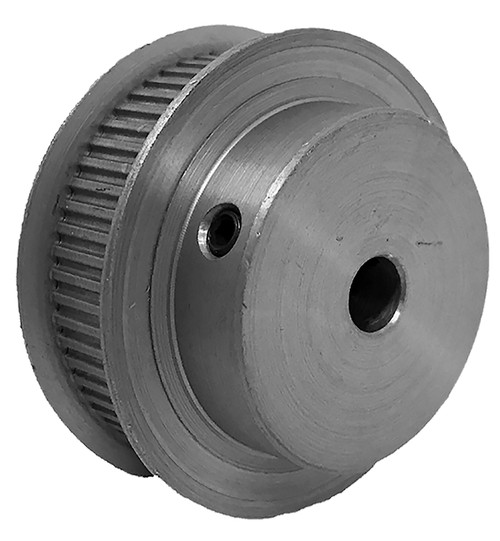

60MP037-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60MP037-6FA3 Timing Pulleys and Toronto Gear Works. Compare product dimensions, download a CAD file, or buy online.

Specifications

Product Number	60MP037-6FA3
Teeth	60
Tooth Style	MXL
For Belt Width (in)	0.3750
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.528
Outside Diameter (in)	1.508
Flange Diameter (in)	1.730
Face Width (in)	0.530
Overall Length (in)	0.844
Hub Diameter (in)	1.222
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.410
Unit System	Inch
P.D. (mm)	39.00
O.D. (mm)	38.30
MOQ	1
Weight (lb)	0.13
Part Number Cross Reference	A 6A16-060DF3708, A6A16-060DF3708, 60MP-037 1/4 6F, 60MXL037-1A X 1/4, 60MP037-6FA3, 60MP037-6FA3
Set Screw Quantity	2

Comparable to: A 6A16-060DF3708, A6A16-060DF3708, 60MP-037 1/4 6F, 60MXL037-1A X 1/4, 60MP037-6FA3, 60MP037-6FA3
